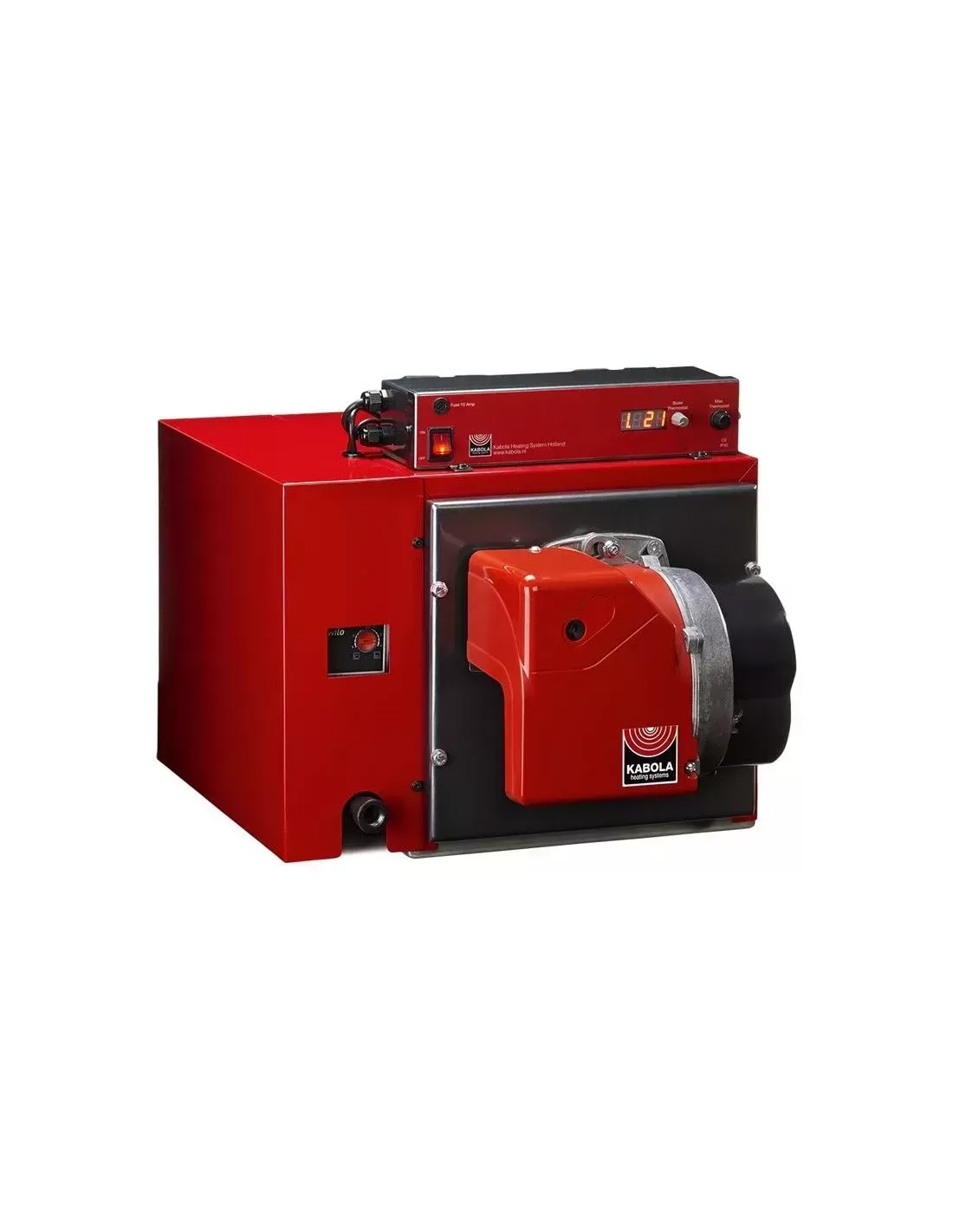

KABOLA COMBI COMPLETE 230V HR500-combi

The Kabola HR series consists of reliable oil-fired boilers providing 15-20kW.
The HR series is available as a central-heating boiler, with a calorifier control, or as a combi boiler.
Its broad applicability and whisper-quiet, fully automatic operation makes this
boiler suitable for the vast majority of sailing and motor yachts.

The HR series is particularly used for long-term or permanent habitation on board. The HR series can heat a central-heating system with radiators, underfloor heating, hot-air heating and existing air-conditioning systems.

KABOLA COMBI COMPLETE 230V heating + continuous tap water

• Type HR500-combi
• Capacity 20KW
• *Width installation size (mm): 500 *Depth installation size (mm): 660 *Height installation size (mm): 500 CH connection (mm): 22
• Drinking water connection (mm): 15
• Oil connection: 3/8
• Flue gas (diameter in mm): 80
• Dashboard: digital
• Energy efficient circulation pump: Yes
• Pump timer: Yes
• Siemens room thermostat: Yes
• Hot water on/off: Yes
• Oil filter Flocotop: Optional
• Oil filter Toc 80: Optional
• Oil filter: Yes
• External air intake: Optional
• Fill and drain combination: Yes
• Voltage (A.C.): 230V
• Tap water 600 (p.m. in ltrs): 6.5
• Weight (kg): 94
• Efficiency % : 90
• Water content boiler (litres): 24
• Fuel: diesel
• Fuel consumption L/h: 1,8
• Flue gas temperature: ºC: 220/240
• Sprayer/Nozzle mm/º : 0.50/60
• Start capacity 230V (W): 295
• Operational capacity 230V (W): 300

*dimensions include the assembly of central heating pump and oil burner
