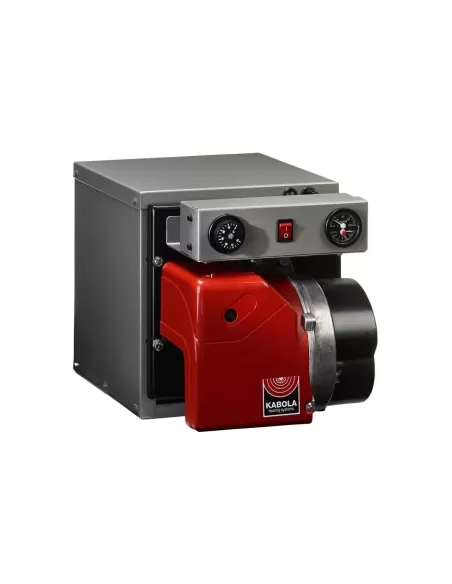

KABOLA COMPACT 7 CV

The Kabola COMPACT 7 is the smallest diesel-fired boiler in the world that provides 7kW. The COMPACT 7 is available as a central-heating boiler, with a calorifier control, or as a combi boiler. Thanks to its small dimensions and its whisper-quiet, fully automatic operation, this boiler is suitable for small or large sailing boats, motor yachts, holiday homes and camper vans. It is suitable for permanent habitation and even for provision of hot tap water. It is ideal for central heating with radiators and/or combined with Kabola hot-air heating. It is extremely efficient, quiet and powerful.

KABOLA COMPACT 7 SERIES

• Type: COMPACT 7 CV
• Capacity 7KW
• *Width installation size (mm): 330 *Depth installation size (mm): 570 *Height installation size (mm): 340 CH connection (mm): 22
• Drinking water connection (mm): No
• Oil connection: 3/8
• Flue gas (diameter in mm): 50
• Dashboard: analog
• Energy efficient circulation pump: Yes
• Pump timer: Yes
• Siemens room thermostat: Yes
• Hot water on/off: No
• Oil filter Flocotop: Yes
• Oil filter Toc 80: Optional
• Oil filter: Optional
• External air intake: Optional
• Fill and drain combination: Yes
• Voltage (A.C.): 230V
• Tap water 600 (p.m. in ltrs): No
• Weight (kg): 47
• Efficiency % : >90
• Water content boiler (litres): 15
• Fuel: diesel
• Fuel consumption L/h: 0,9
• Flue gas temperature: ºC: 190/220
• Sprayer/Nozzle mm/º : 0.25/60
• Start capacity 230V (W): 295
• Operational capacity 230V (W): 255

*dimensions include the assembly of central heating pump and oil burner
