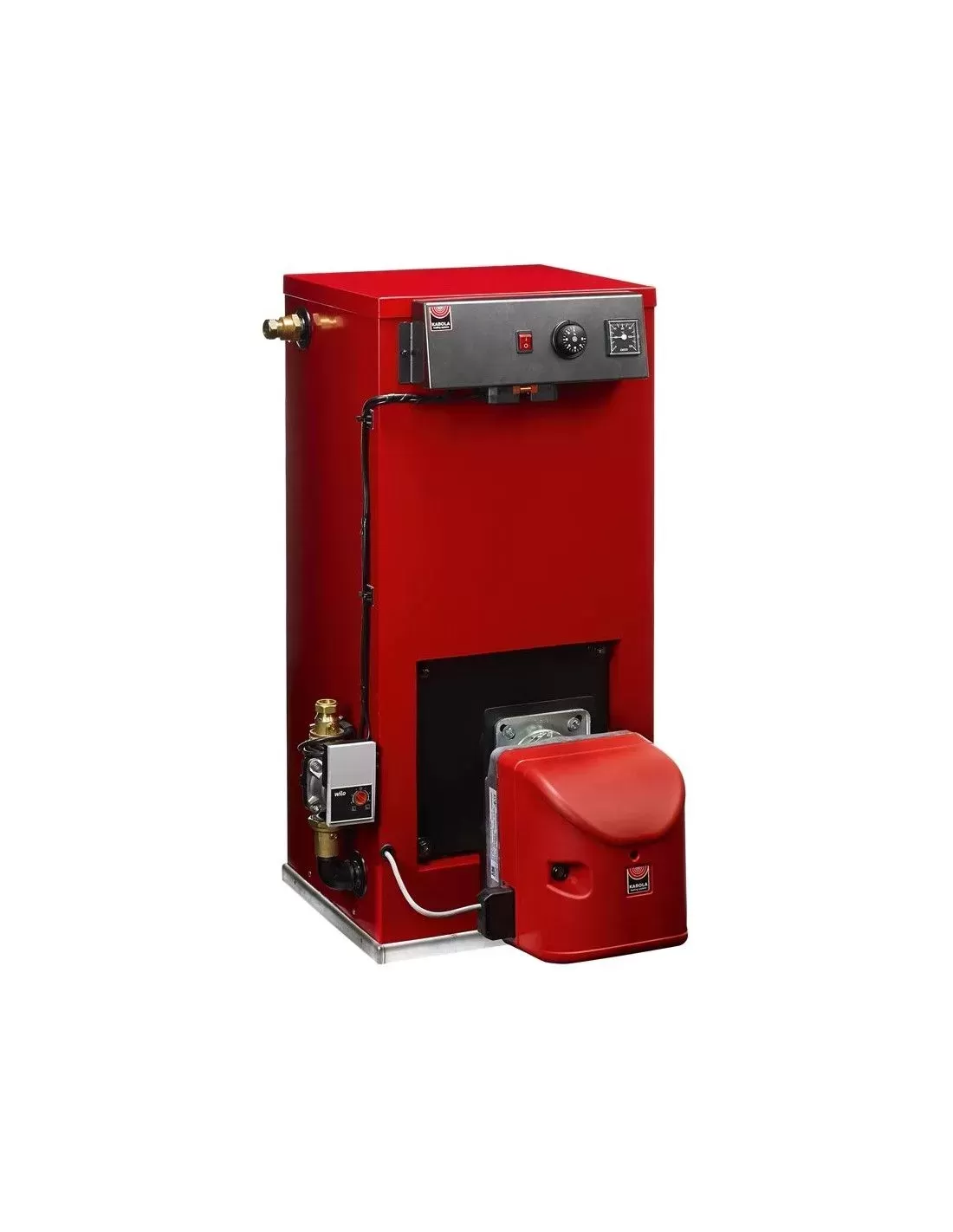

KABOLA B SERIES COMPLETE 230V CV B55

The Kabola B series consists of oil-fired boilers that provide 29 to 116kW. The B series is available as a central-heating boiler, a combi boiler, and on request, it is also available with a calorifier control.
Naturally, the B series can also be connected to a central-heating system, hot-airheating system, air-conditioning system and an underfloor-heating system. For use on everything from commercial ships to industrial applications.

KABOLA B SERIES COMPLETE 230V heating

• Type CV B55
• Capacity 64KW
• *Width installation size (mm): 498 *Depth installation size (mm): 708 *Height installation size (mm): 970 CH connection : 1 .5"
• Hook: No
• Oil connection (internal thread): 3/8
• Flue gas (diameter in mm): 150
• Dashboard: analog
• Energy efficient circulation pump: Yes
• Pump timer: No
• Siemens room thermostat: Yes
• Hot water on/off: No
• Oil filter Flocotop: Optional
• Oil filter Toc 80: Optional
• Oil filter: Yes
• External air intake: Optional
• Fill and drain combination: Yes
• Voltage (A.C.): 230V
• Tap water 600 (p.m. in ltrs): No
• Weight (kg): 178
• Yield % : 90
• Water content boiler (litres): 36
• Fuel: diesel
• Fuel consumption L/h: 6,1
• Sprayer/Nozzle mm/º : 1.50/60
• Operational capacity 230V (W): 230

*dimensions include the assembly of central heating pump and oil burner
