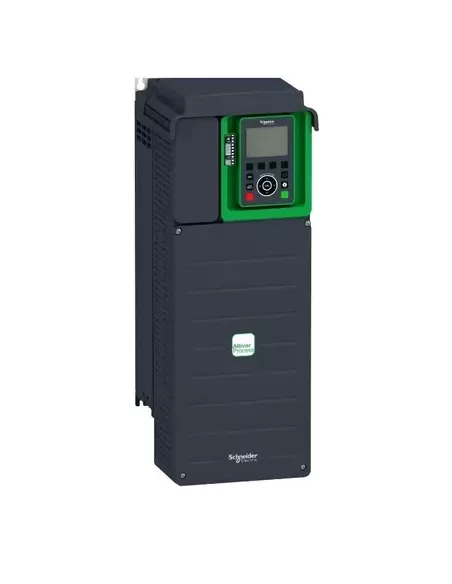

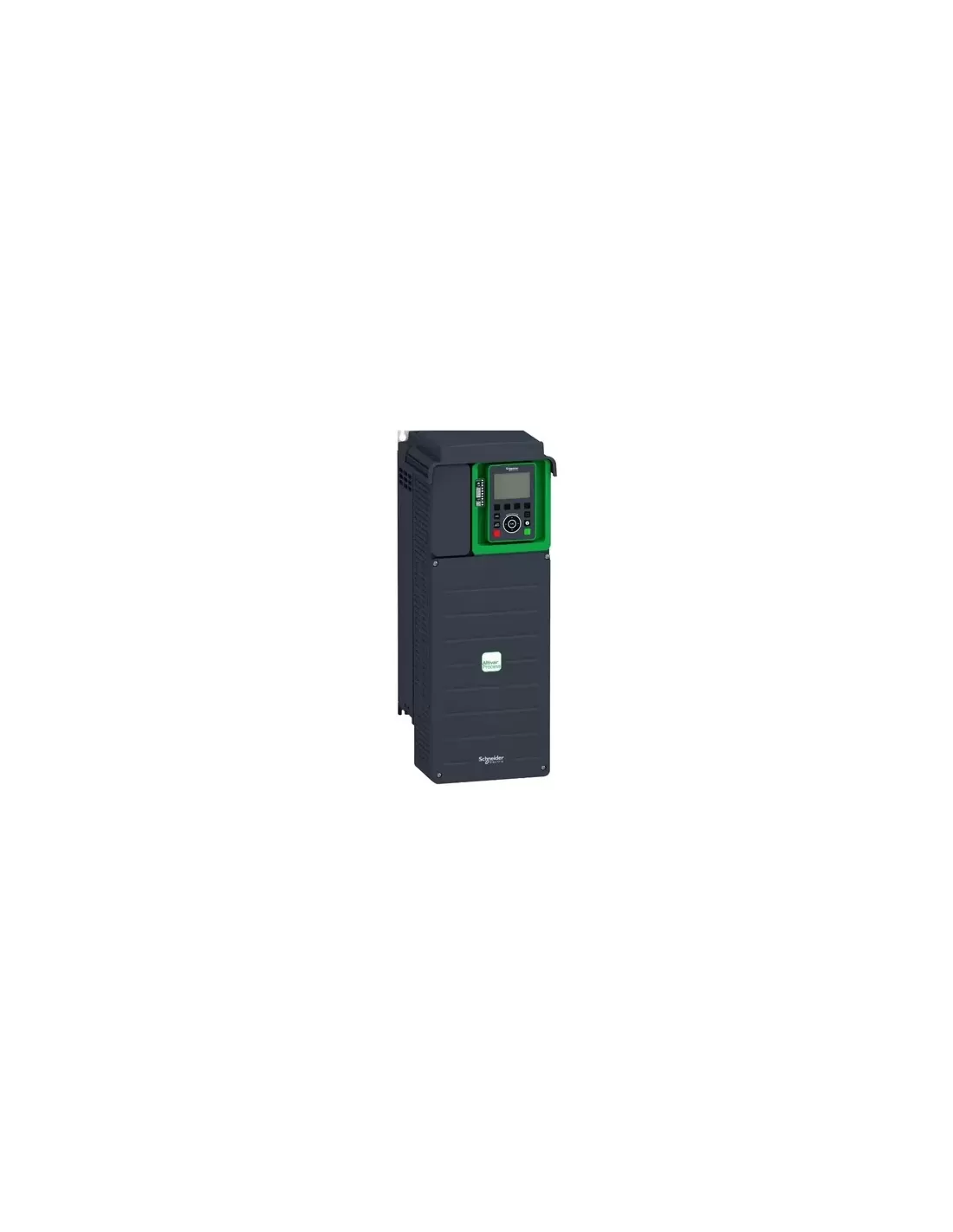

Variable Speed Drive ATV930D22N4

Variable speed drive - ATV930 - 22kw - 400/480V - with braking unit - IP21

Product technical characteristics:

Product destination: Synchronous motors; Asynchronous motors
Specific product application: Process for industrial
Number of phases: in network 3 phases
Mounting: Wall mount
Communication protocol port: Serial Modbus; Ethernet/IP; Modbus TCP
[Us] Nominal supply voltage: 380...480 V - 15...10
Motor power kW: 22.0 kW for normal duty; 18.5 kW for heavy duty
DC output current: 46.3 A at 4 kHz for normal duty; 39.2 A at 4 kHz for heavy duty
