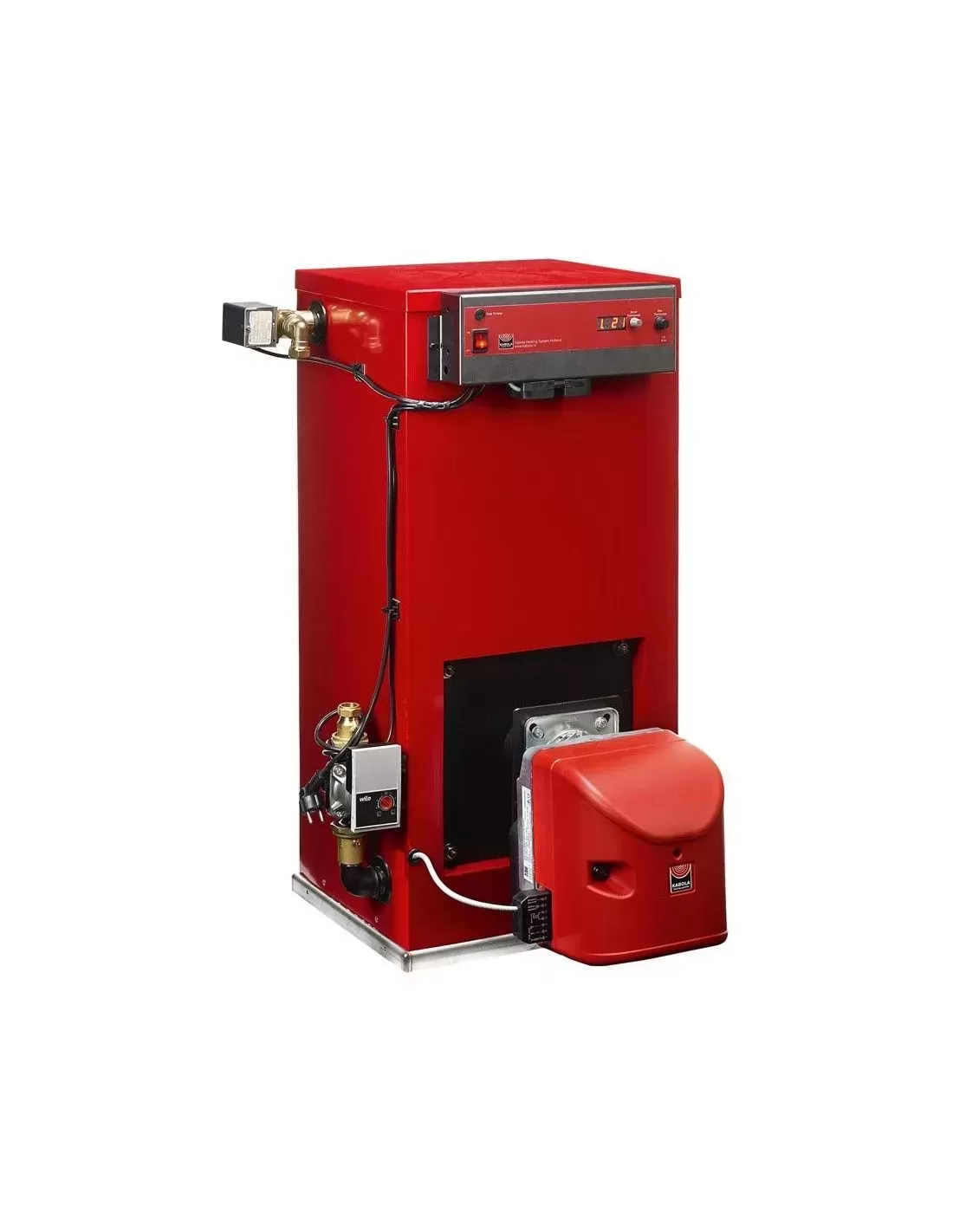

KABOLA B SERIES CALORIFIER 230V B35-BOILER

The Kabola B series consists of oil-fired boilers delivering 29 hp at 116kW. The B-series is available with central heating, combi boiler and, on request, it is also available with a heat exchanger control.
Of course, the B-series can also be connected to a central heating system, a warm air heating system, an air conditioning system and a floor heating system. For use from commercial vessels to industrial applications.

KABOLA B SERIES B - 230V HEAT EXCHANGER with heating + hot water via external water heater

• Type B35-BOILER
• Capacity 41KW
• * Installation dimension width (mm): 468 * Installation dimension height (mm): 503 * Installation dimension height (mm): 970 CH connection: 1"
• Cârlig: No
• Oil connection (internal thread): 3/8
• Burning gas (diameter & diameter mm): 130
• Control panel: analog
• Energy efficient circulation pump: Yes
• Pump timer: NoHot water on/off: No
• Oil filter: Yes
• External air intake: Optional
• Fill and exhaust combination: Yes
• Voltage (A.C.): 230V
• Weight (kg): 140
• Rpm: 90%
• Water tank (liters): 23
• Fuel: diesel
• Fuel consumption L/h: 3,8
• Pulverizer / nozzle mm / º: 0,85 / 60
• Operating capacity 230V (W): 230/250

* Dimensions include central heating pump and oil burner assembly
