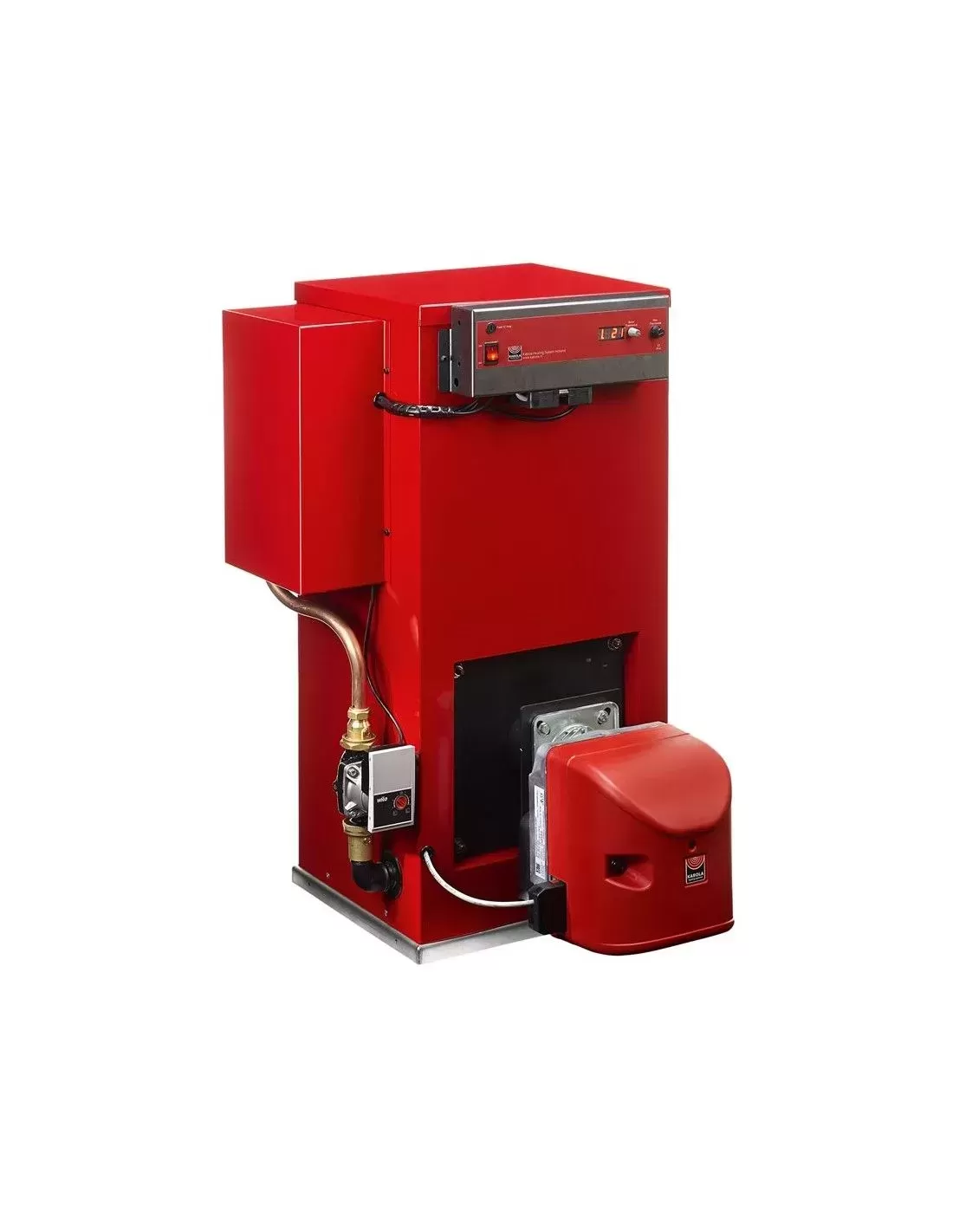

KABOLA B SERIES COMBI COMPLETE 230V KB35-COMBI

The Kabola B series consists of oil-fired boilers that provide 29 to 116kW. The B series is available as a central-heating boiler, a combi boiler, and on request, it is also available with a calorifier control.
Naturally, the B series can also be connected to a central-heating system, hot-airheating system, air-conditioning system and an underfloor-heating system. For use on everything from commercial ships to industrial applications.

KABOLA B SERIES COMBI COMPLETE 230V heating + continuous tap water

• Type B35-combi
• Capacity 41KW
• *Width installation size (mm): 468 *Depth installation size (mm): 503 *Height installation size (mm): 970 CH connection : 1 "
• Hook: 15
• Oil connection (internal thread): 3/8
• Flue gas (diameter in mm): 130
• Dashboard: digital
• Energy efficient circulation pump: Yes
• Pump timer: Yes
• Siemens room thermostat: Yes
• Hot water on/off: Yes
• Oil filter Flocotop: Optional
• Oil filter Toc 80: Optional
• Oil filter: Yes
• External air intake: Optional
• Fill and drain combination: Yes
• Voltage (A.C.): 230V
• Tap water 600 (p.m. in ltrs): 11
• Weight (kg): 140
• Yield % : 90
• Water content boiler (litres): 23
• Fuel: diesel
• Fuel consumption L/h: 3,8
• Sprayer/Nozzle mm/º : 0.85/60
• Operational capacity 230V (W): 230/250

*dimensions include the assembly of central heating pump and oil burner
